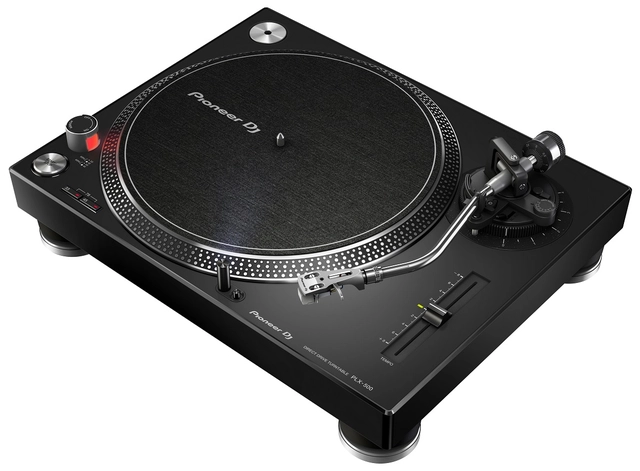

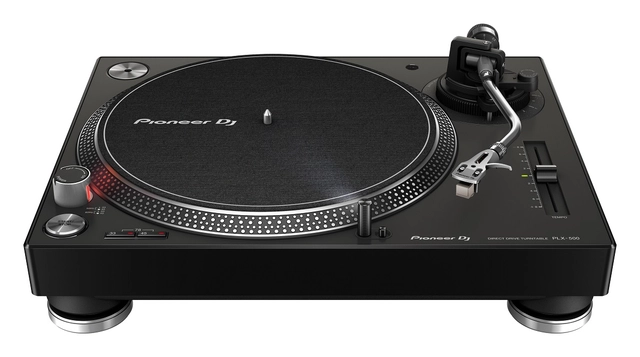

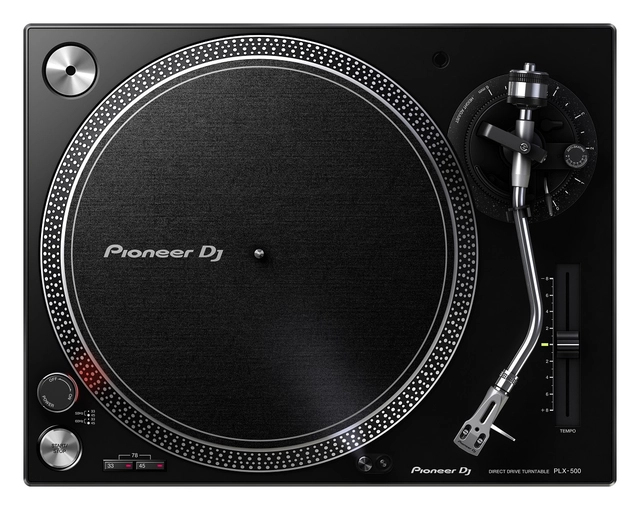

Pioneer DJ PLX-500The PLX-500 inherits the layout of the PLX-1000 professional turntable and produces a warm, clear analogue sound. The perfect deck if you want to start playing with vinyl or if you just want to listen to your record collection at home.
Excellent sound design
Just like the PLX-1000, the PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phono/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier.
Easy digital recording
Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out.
Smooth DJ play
Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer and the RB-VS1-K Control Vinyl to play and perform with your digital files.

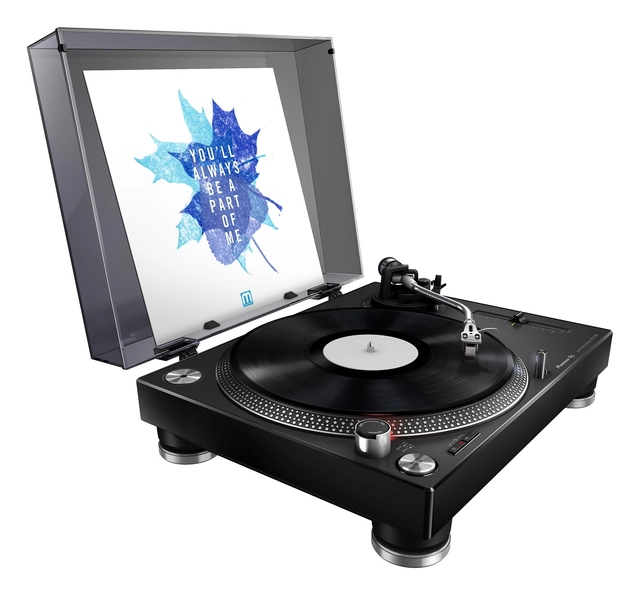

Cover art display
Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover.
Specifications
- Power requirements: AC 100V, 50 Hz/60 Hz
- Power consumption: 8W
- Main unit weight: 10.7kg
- External dimension: 450mm x 159mm x 368mm
- Output terminal: RCA x1 and USB-B x1
- Drive method: Servo type direct drive
- Motor: 3-phase brushless DC motor
- Braking system: Electronic brake
- Rotation speed: 33 1/3 rpm, 45rpm, 78rpm
- Rotation speed adjustable range: ±8%
- Wow and flutter: 0.15% or less WRMS
- S/N ration: 50dB or higher
- Turntable: Aluminum die-casting Diameter 332mm
- Starting torque: 1.6kgf cm or more
- Starting time: 1second or less (at 33 1/3 rpm)
- Arm type: Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type
- Effective length: 230.5mm
- Overhang: 16mm
- Tracking error: Within 3°
- Arm height adjustable range: 6mm
- Stylus pressure variable range: 0g to 4.0g (1 scale 0.1g)
- Proper cartridge weight: 9.5g or less (single cartridge)
- Cartridge type: VM
Accessories
- Slip mat
- Dust cover
- Adapter for EP record
- Balance weight
- Head shell (cartridge included)
- Shell weight
- Power cord
- USB cable
- Audio adapter cable (Stereo pin plug (female) to stereo mini plug (male))
- Operating instructions
